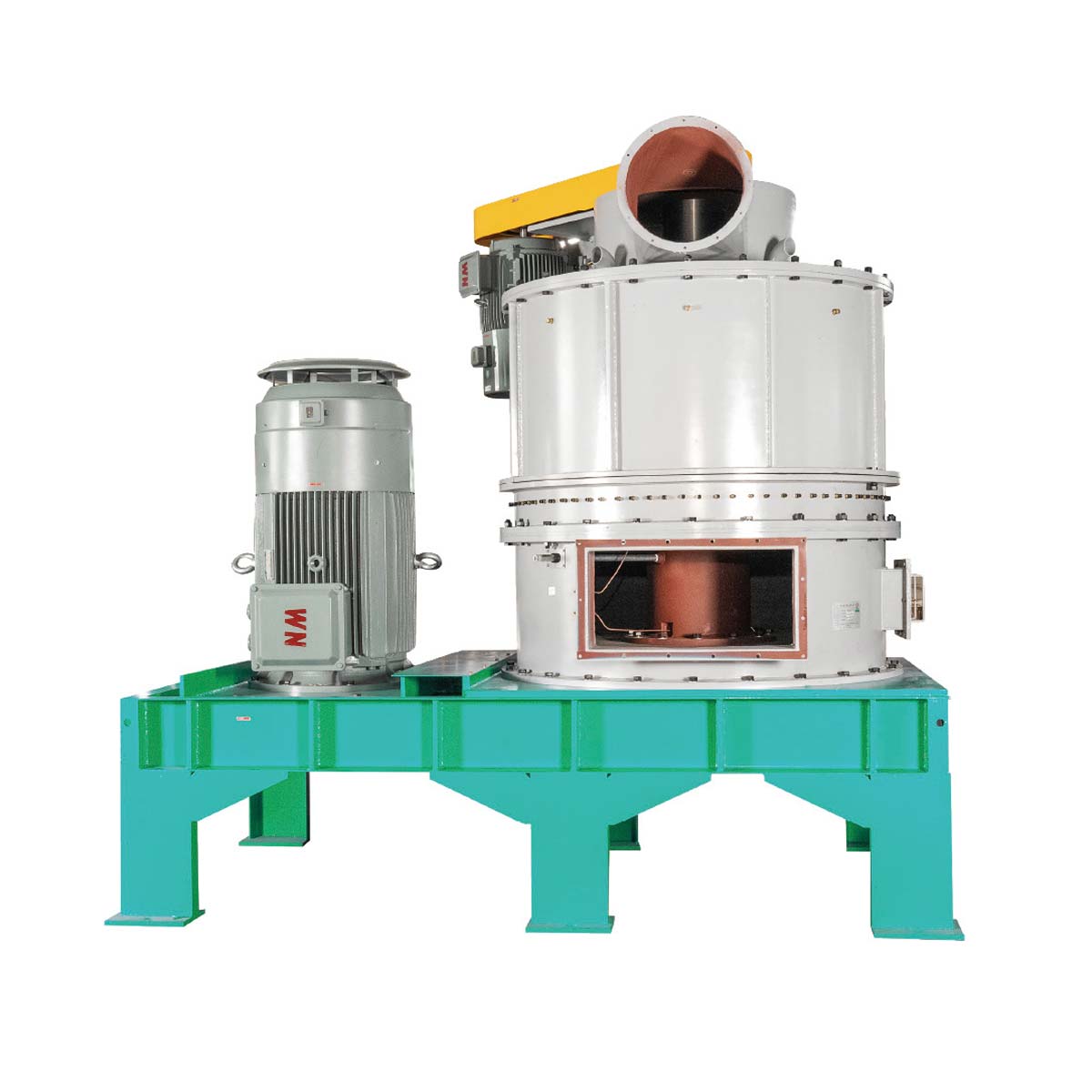

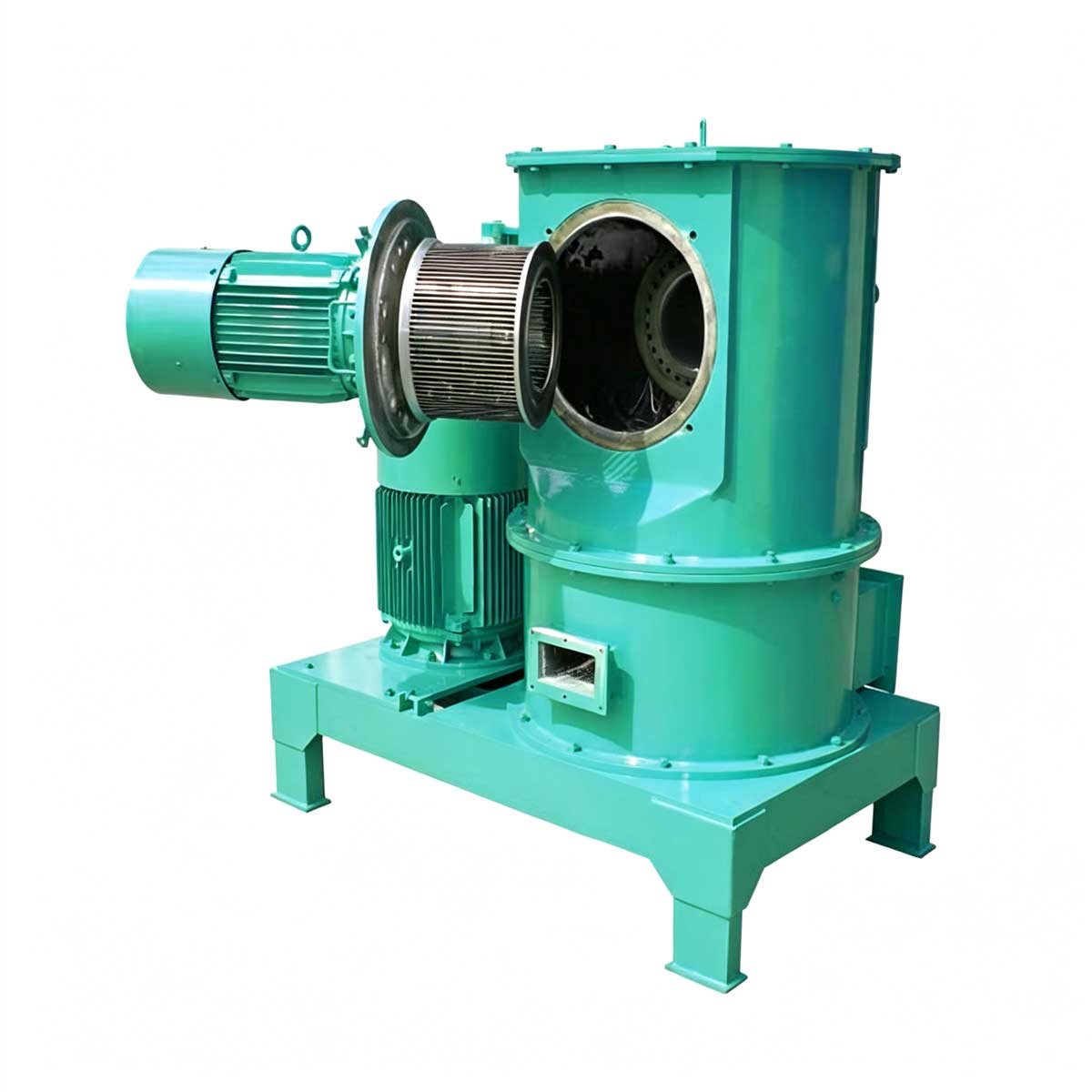

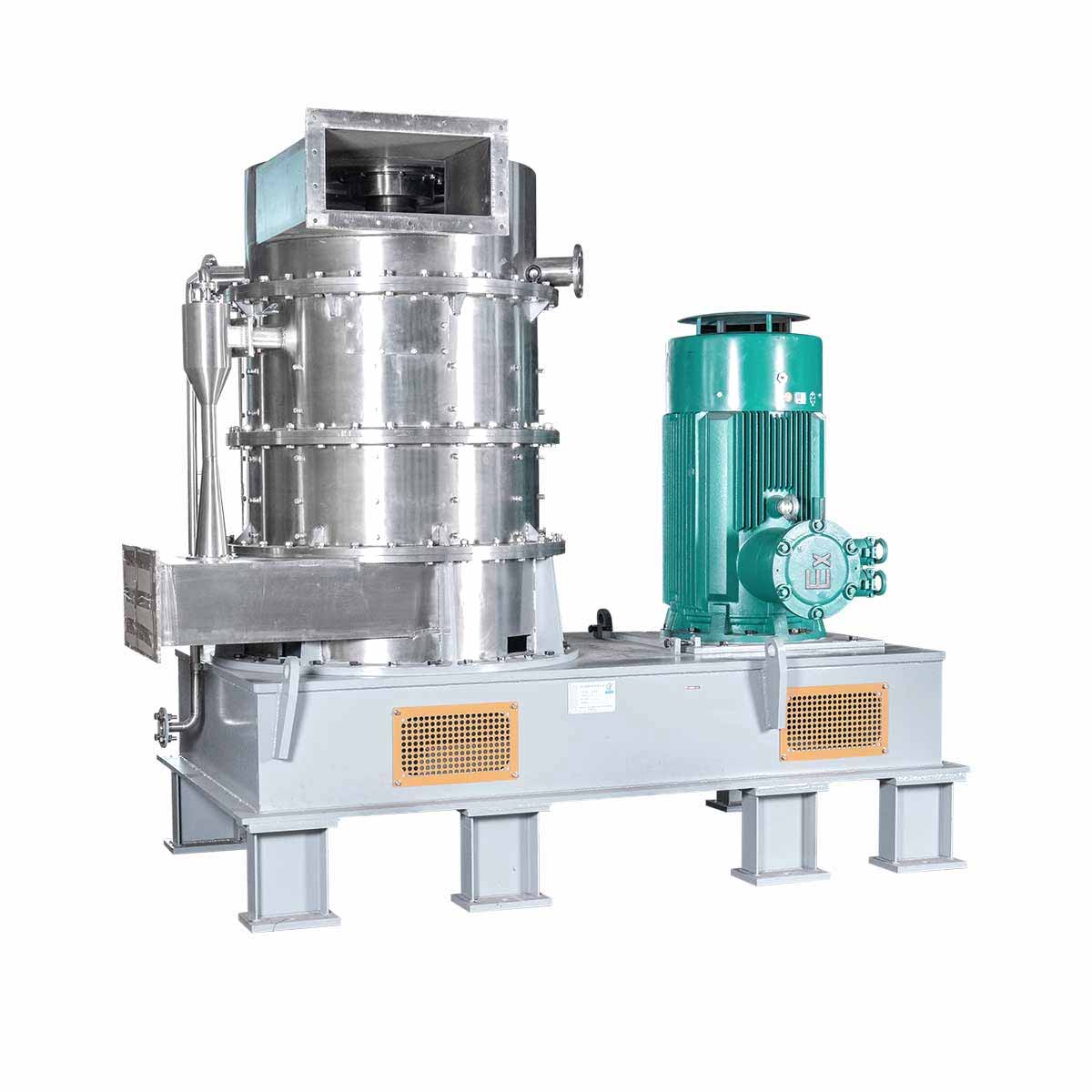

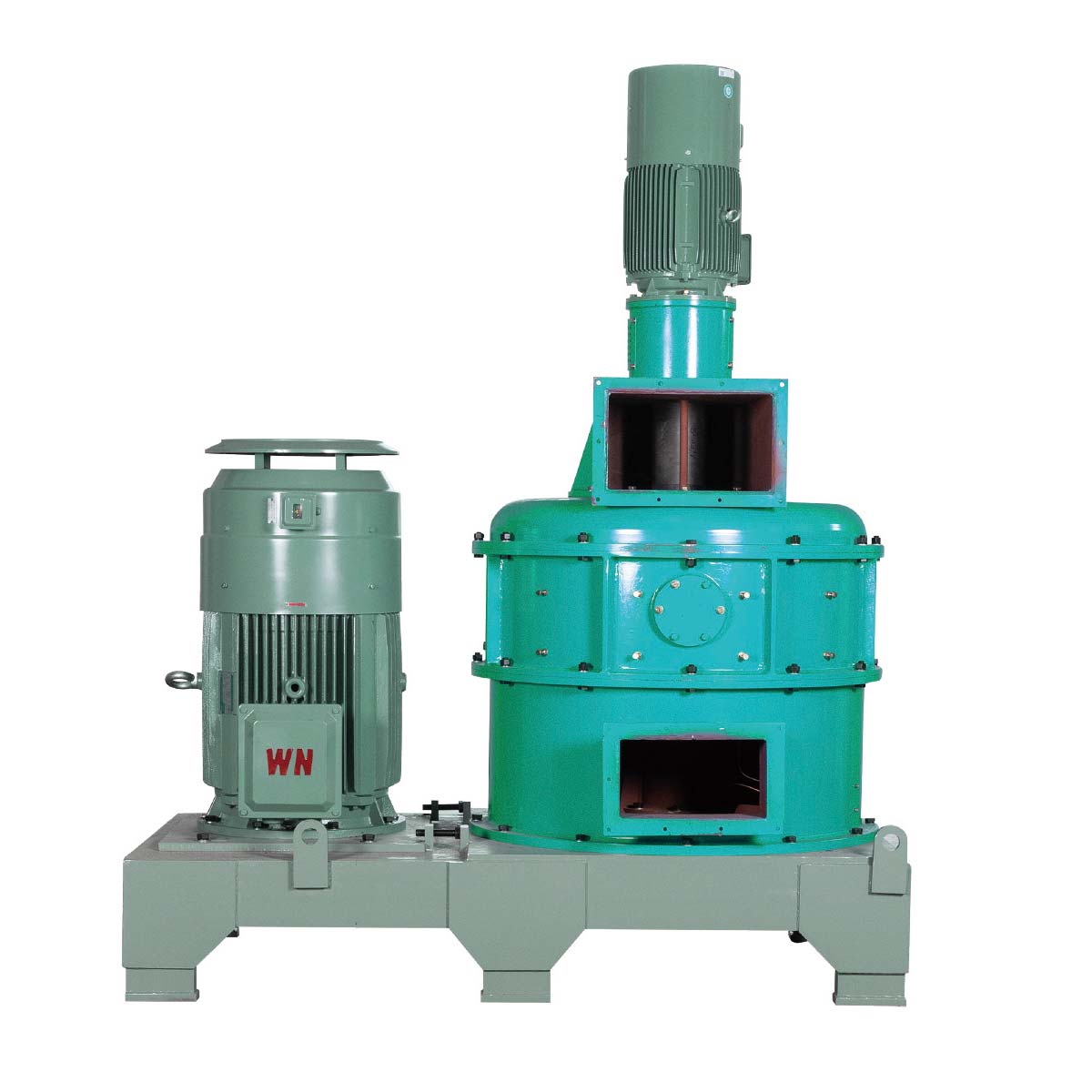

Air Classifier Mill

The Air Classifier Mill is an integrated dry-process ultrafine de-agglomeration system combining impact dispersion with built-in dynamic air classification. Widely deployed for precipitated silica processing — it is the most commonly used mass-production model in the industry — it delivers stepless fineness adjustment, narrow particle size distribution and exceptional agglomerate breakdown capability. An optional ceramic-lined grinding chamber minimizes metal contamination, safeguarding the high purity critical to silicone rubber, food-grade and coating-grade silica. The mill can be seamlessly integrated with precision classifiers, closed conveying systems and surface modification equipment to form a complete closed-loop silica production line.

Email us I Need Solutions

Air Classifier Mill

How It Works

Technical breakdown of the core processes and technology behind Air Classifier Mill.

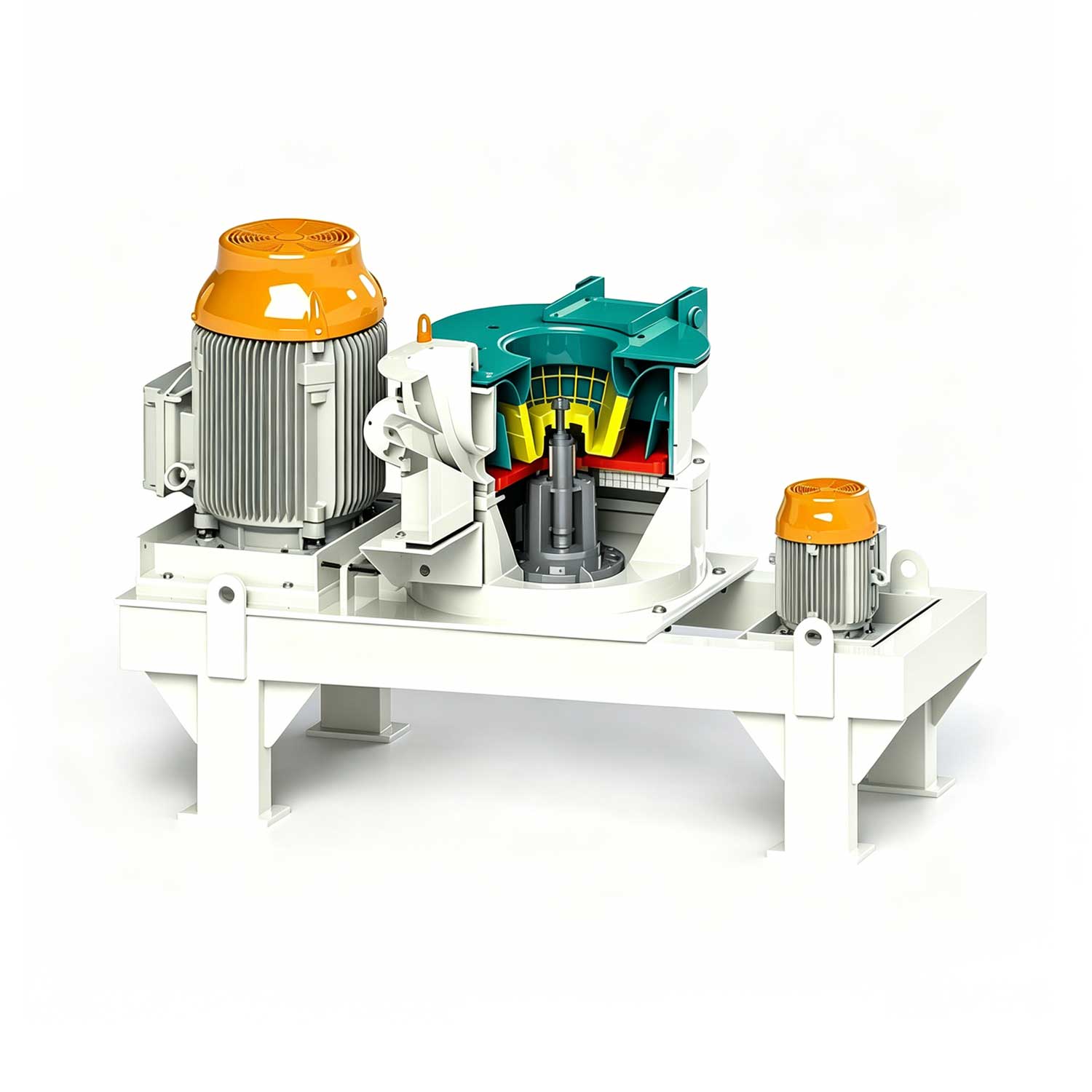

Spray-dried silica powder feeds into the grinding chamber via the feed valve, where high-speed rotating impact discs apply controlled impact, shear and collision forces to effectively disperse spray-drying derived hard agglomerates while precisely regulating particle size distribution and strictly controlling D50 / D90 oversized particles. Airflow conveys the processed particles upward to the integrated turbine classifier. Fine silica powder meeting specification passes through the classifier and is collected by cyclone separator and bag dust collector, while oversized coarse particles are centrifugally returned to the grinding chamber for reprocessing, creating a continuous closed-circuit cycle. An optional water-cooling jacket for the grinding chamber supports temperature-sensitive processing requirements — particularly critical for high-dispersion and hydrophobic silica grades — preserving stable powder morphology, bulk density and BET surface area while preventing thermal degradation of reinforcing performance.

Air Classifier Mill

Technical Parameters

Air Classifier Mill defines excellence through quantified data, meeting the most stringent requirements of high-precision material processing.

Swipe left or right to see more

Model Series: JCSM-V	280	350	410	510	630	710	800	900	1000	1100	1250	1500	2000
Grinding motor power (kW)	7.5	11	22	30	37	45	55	75	90	110	160	200	355
Classification motor power (kW)	2.2	3	4	5.5	7.5	7.5	11	15	18.5	22	30	45	55
Particle size (μm)	12~150	12~150	12~150	12~150	10~120	10~120	10~120	10~120	8~120	8~120	8~120	8~120	8~120
Air volume(max) (m³/h)	720	1200	1800	3000	3600	4500	5400	8000	10000	12000	16500	22500	36000

Model Series: JCSM-A	280	350	450	510	710	900	1100	1250
Grinding motor power (kW)	7.5	11	22	30	45	75~90	110~132	160~200
Classification motor power (kW)	1.5	3	4	5.5	7.5	15	22~30	30~37
Particle size (μm)	12~150	12~150	12~150	12~150	10~120	10~120	10~120	10~120
Air volume(max) (m³/h)	600	1200	2400	3000	4500	8000	12000	16000

Model Series: JCSM-L	280	350	450	630	780	1000	1350
Grinding motor power (kW)	11	22	45	75~90	130~160	200~250	250~355
Classification motor power (kW)	2.2	4	11	18.5	30	37~45	45~75
Particle size (μm)	10~100	10~100	10~100	8~120	8~120	1~150	1~150
Output (kg/h)	0.05~0.6	0.1~1.2	0.25~3.0	0.5~6.0	1.0~15.0	1.5~25	2.5~40

Model Series: JCSM-H	280	410	510	630	710	800	900	1000	1250	1500
Grinding motor power (kW)	7.5	22	30	37	45	55	75	90	132	200
Classification motor power (kW)	4	5.5	7.5	11	11	15	18.5	22	30	45
Particle size (μm)	5~150	5~150	5~150	8~120	8~120	8~120	8~120	10~150	10~150	10~150
Air volume(max) (m³/h)	600	1800	3000	3600	4500	5400	6000	7500	12000	16500

Model Series: JCSM-WH	280	400	500	630	800	1000	1250
Grinding motor power (kW)	7.5	22	30	37	55	90	132
Classification motor power (kW)	4	5.5	7.5	11	15	22	30
Particle size (μm)	8~120	8~120	8~120	10~150	10~150	12~150	12~150
Air volume(max) (m³/h)	600	1200	1600	2400	4000	6000	10000
